Total Luminous Flux Measurement System HM/FM Series
|
|
IESNA LM79 and LM-80 compliant measurement system
Are you interested in alliance or distributorship for this product? |
- Product
- Specification
- HM series
- FM series
Product
Feature
- Accommodates Maximum 2400mm fluorescent tube
- ESNA LM79 and LM-80 compliant
- Wide dynamic range thanks to high performance array spectrometer
- Wide sphere diameter range between φ250mm and φ3,000mm

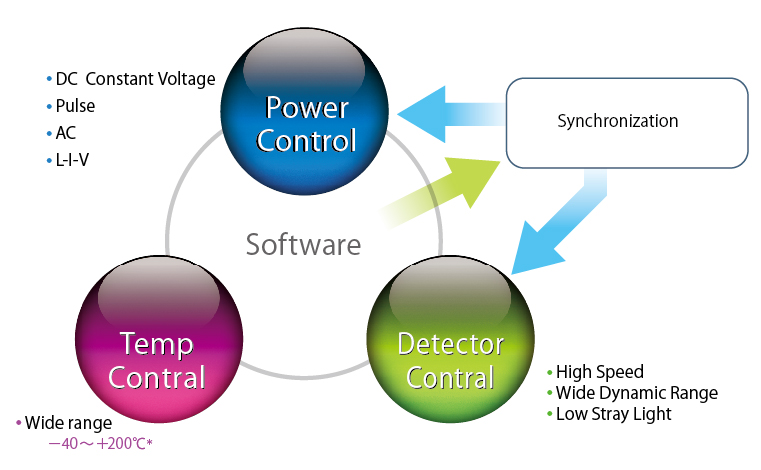

- L-I-V, Pulse, PWM, Tem. Control (-40c to +200c) measurement are available
- PWM (Pulse Width Modulation) applicable
Measure Item
- Total luminous flux〔JIS C 7801:2009 / JIS C 8152:2007〕
- Total radiant flux（Spectrum）
- SDCM
- Chromaticity（u, v）〔CIE 1960UCS〕
- Chromaticity（x, y）〔JIS Z 8724:1997〕
- Chromaticity（u', v'）〔CIE 1976UCS〕
- Color Temperature & Duv〔JIS Z 8725:1999〕
- Dominant & Purity 〔JIS Z 8701:1999〕
- Color rendering index（Ra, R1～R15）〔JIS Z 8726:1990〕
Specification
Specification
| Optics | |
| Integrating Hemisphere ＊1 （HalfMoon） |
φ250、φ300、φ500、φ1000、φ1650、φ2000、φ3000mm |
| Flux standard lamp | <5W,<5V,Approx.50 lm |
| Self absorption correction lamp | <5W,<5V,Approx.50lm |
| Lamp power | ± 0.1 %,± 2.0 mA |
| Lamp switching box | Flux standard lamp and self absorption correction lamp is switched ON/OFF with one lamp power supply. |
| Array spectrometer | |
| Wavelength range | 360 nm ～ 1100 nm ＊2 |
＊1: Ask for other sizes
＊2: Can be chosen from several models
HM series
 |
|
| Total Luminous Flux Measurement System HM series |
Feature
- Lighting direction is changeable, making actual lighting position attainable.
- No self absorption error because only the illuminant is located in the integrating sphere.
- Double sensitivity compared with conventional integrating sphere
- Best suitable for surface illuminant (2pi light source)
- Fixture is located outside hemisphere, making sample temperature control easy. (High brightness light source)
- Suitable for big lighting device since the shadow of device itself can be minimally eliminated.(Device size up to one third of sphere diameter)

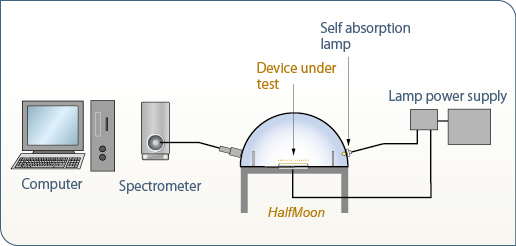

System Configuration
FM series
 |
|
| Total Luminous Flux Measurement System FM Series |
Feature
- Accommodates Maximum 2400mm fluorescent tube
- Self absorption correction function

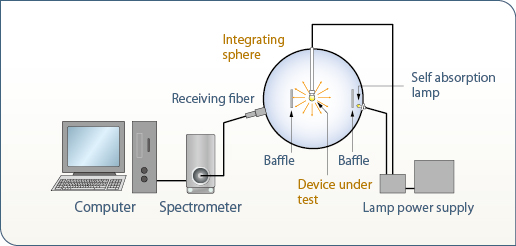

System Configuration
- Product
- Specification
- HM series
- FM series
