High Sensitive Spectroradiometer HS-1000

The spectroradiometer covering very wide dynamic range of luminance level now achieves lowest noise and highest accuracy measurement using electro-cooling linear array sensor, unique spectrometry design and signal processing.

Product

Feature
  • High precision spectroscopy method
  • Wide dynamic range of luminance between 0.005cd/m² and 400,000 cd/m²
  • Wide spectrum range between 355nm and 835nm complies CIE recommendation
  • Unique optical design to reduce polarization error to <1% enables high precision testing of DUT having polarization property such as LCD.
  • High speed; 1 second for standard mode. 20msec for continuous mode
  • Wide luminance range without changing viewing angle.
     (0.005cd/m2 ~ 4,000cd/m2 at 2°)
  • Stable measurement of pulse drive light source and luminaries
  • Complies reporting format of CIECAM02 , Color Appearance Modelling for Color Management Systems)
  • Complies reporting format of CIE2000:2011, taking mesopic vision (Purkinje effect) into considered.



Measure Item
- Radiance Luminance (W/sr/m2
- Luminance (cd/m2
- Chromaticity coordinates x, y  [ CIE1931]
- Chromaticity coordinates u', v'  [ CIE1976 ]
- Chromaticity coordinates U', V'  [ CIE1976 ]
- Correlated color temperature
- CIE standard observer 2゜/10゜
- Tristimulus value XYZ
- Tristimulus value XYZ
- Deviation
- Four arithmetic operations of spectrum data
- Functional processing of spectrum data
- Color gamut(NTSC ratio) *1
- Response time *2
- Brightness (J)(Q) *3
- Saturation (s) *3
- Chroma (C) *3
- Colorfulness (M) *3
- Equivalent luminance *4

 *1 Optional *2 HS-1000RT *3 CIECAM02complied  *4 CIE200:2011complied




Application
  • Spectrum, luminance, color, CCT measurement of LCD, PDP, OLED and LED display
  • Spectrum, luminance, color, CRI measurement of lamp and luminaries
  • Benchmarking of various luminance or colorimeter instruments
  • Non-contact object color measurement



Specification

Specification
Model HS-1000
Principle Spectroscopy
Wavelength range 355nm ~ 835nm
Viewing angle 0.1゜,0.2゜,1゜,2゜
Measure distance *1 240mm ~ ∞
Minimum spot diameter

2゜:<10.0mm, 1゜:<5.0mm, 0.2゜:<1.0mm, 0.1゜:<0.5mm

Luminance Accuracy ±2%
Chromaticity Accuracy ±0.002
Size and weight 187(W) * 249(H) *400(D) mm, 7.5kg

*1  The distance from object lens top

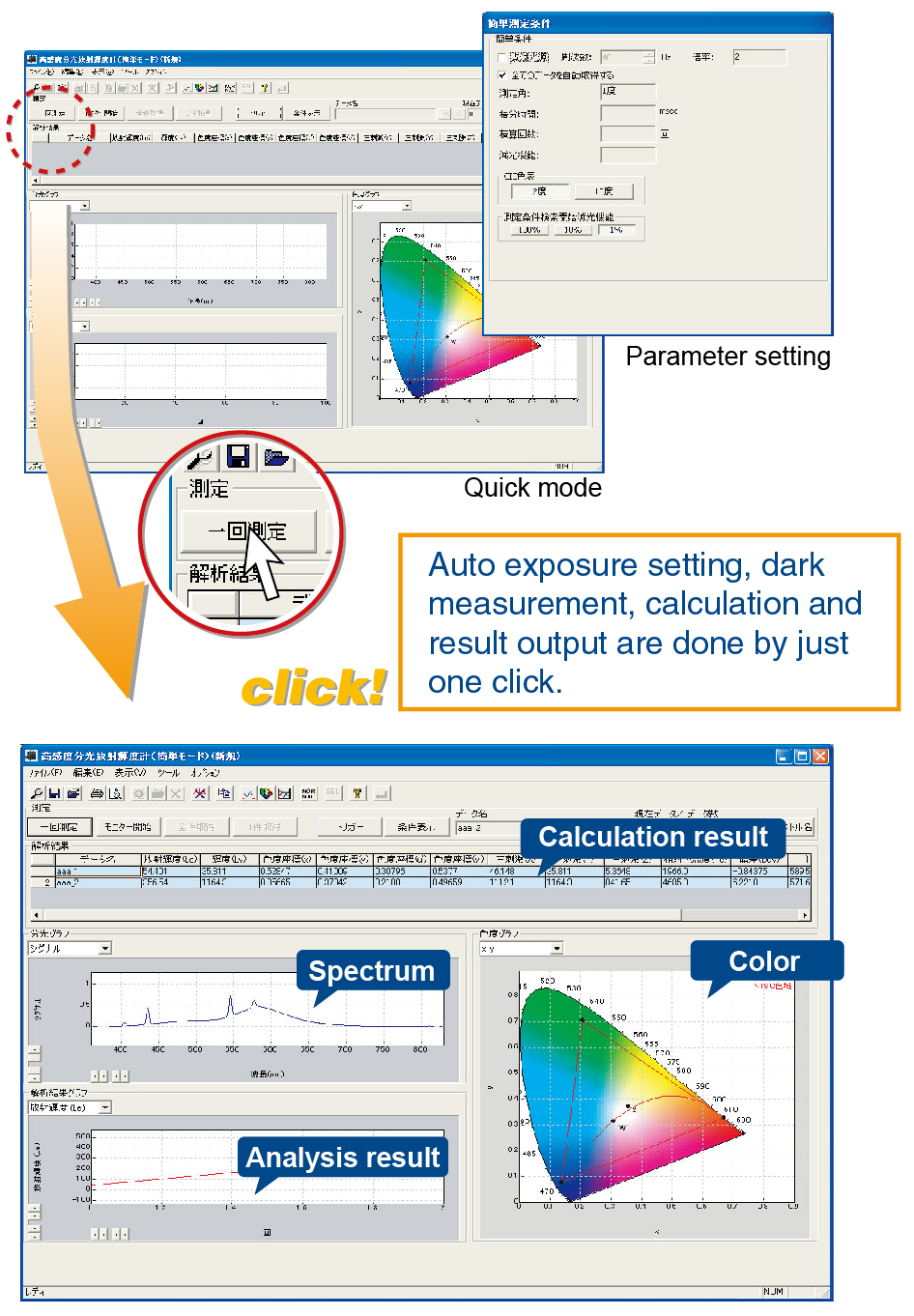

Software
  • User friendly software; Choose from quick mode and expert mode
  • Data calculation result at a glance
  • Support four arithmetic operations of spectrum data and function processing of spectrum data
  • Parameter setting/Quick mode/Calculation result/Spectrum/Analysis result/Color
  • Calculation values are displayed just at a glance
  • Optionally response time measurement is also available (Ask us for detail)

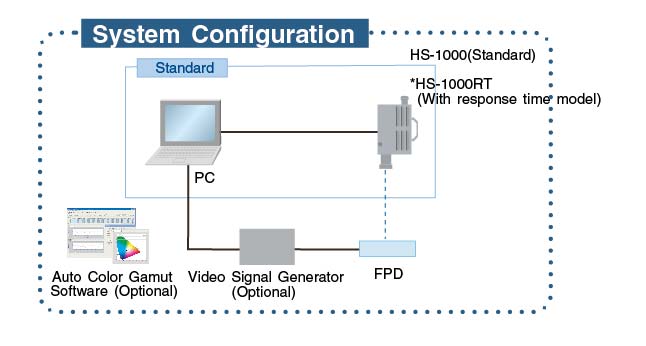

Optional
  • Color gamut auto measure function
     - Auto measurement of NTSC ratio of display synchronized with signal generator
    (Optional)
  • Response time measure model(HS-1000RT)
     - Response time measure function added on standard HS-1000
     - Moving picture simulation is possible from response time measure result
