Capillary Electrophoresis System Agilent 7100

This single system can analyze mixtures containing cations and anions.
Even if sample is a limited amount, it can be analyzed with high speed and resolution.

Product

Features
  • Excellent technical support with a wealth of applications such as buffer manuals
  • This single system can analyze mixtures including cations and anions
  • Even if sample is a limited amount, it can be analyzed with high speed and resolution
  • 3 to 5 times higher sensitivity without loss of resolution using ` bubble cell capillary`
  • In most cases pretreatment is unnecessary even in the presence of counter-ions and/or contaminations
  • Economical and environmentally friendly because no expensive columns and/or solvents are used



Principle

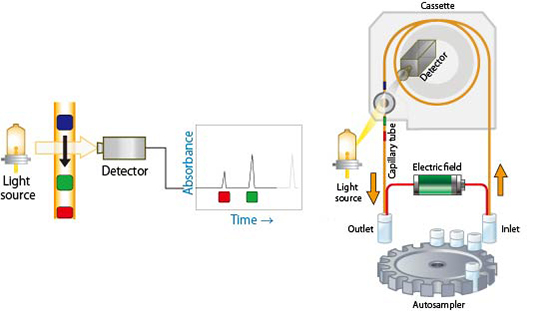

Principle and procedure

Capillary electrophoresis is a qualitative and quantitative analytical method of the separated components by performing electrophoresis in a capillary tube with an inner diameter of 100 μm or less.

[Procedure]

  1. Fill the capillary tube with the migration solution.
  2. Inject the sample into the capillary tube.
  3. Immerse both ends of the capillary tube into the migration solution and apply a high electric field.
  4. Each component is separated while migrating by electrophoresis.
  5. Each component is recorded as a peak in the order of reaching the detector.

Principle and procedure

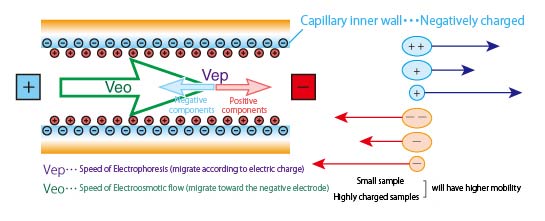

Electro-osmotic flow acting as a pump

Normally, the inner wall of a capillary tube is negatively charged by the silanol group, which causes cations in the liquid to collect on the wall. When an electric field is applied, these cations migrate to the negative electrode with the solvent in tow. This flow is called electroosmotic flow and acts like a liquid chromatographic (LC) pump. The sample undergoes electrophoresis while flowing with the electroosmotic flow, and each component is separated according to differences in charge and Stokes radius.

VO2: Electro-osmotic flow acting as a pump



Specifications

Power source  Long-life deuterium lamp(With RFID tag)
Detector  Real time UV-Visible diode-array detector
Wavelength range  190 ~ 600 nm
Precision  1 nm
Electrophoresis power  Voltage range: 0 ~ ±30 kV 、 Current: 0 ~ 300 μA 、
 Power: 0 ~ 6 W
 Operates at constant voltage, current and power.
 Polarity can be reversed by program.
Power source  AC 100 ~ 240 V 、 50/60 Hz 、 300 VA
Dimensions(WDH)  350 × 590 × 510 mm
Weight  35 kg



Examples

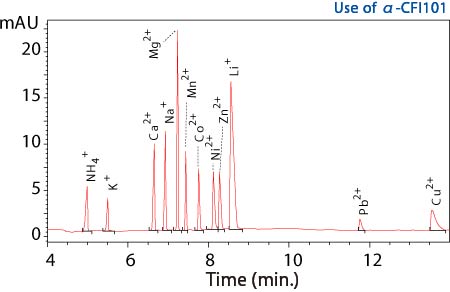

Cation analysis

Cation analysis

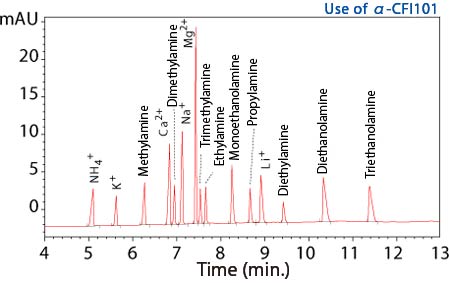

Cation and amine groups analysis

Cation and amine groups analysis

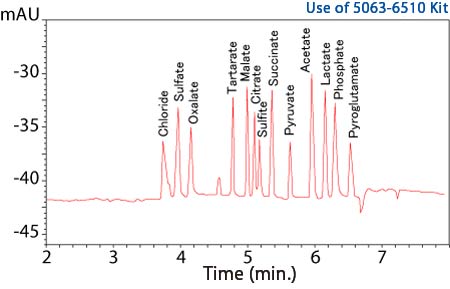

Organic acid analysis

Organic acid analysis

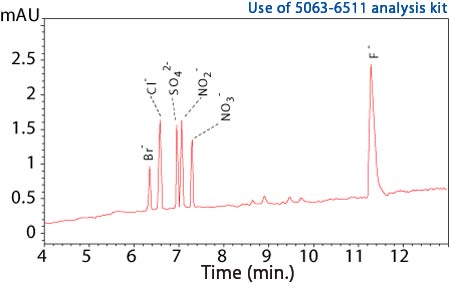

Inorganic anion analysis

Inorganic anion analysis

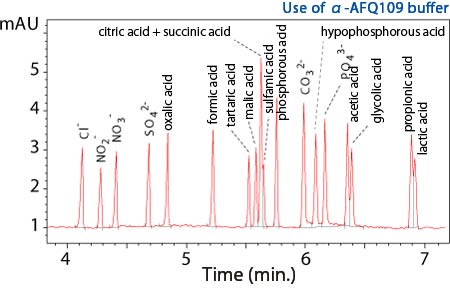

Anion group and organic acids analysis

Anion group and organic acids analysis

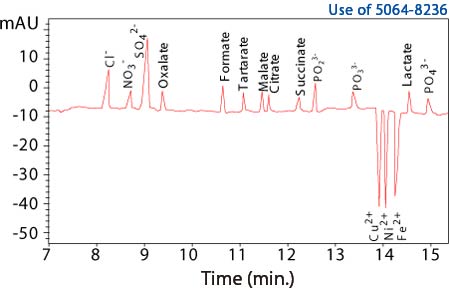

Plating solution simultaneous analysis

Plating solution simultaneous analysis

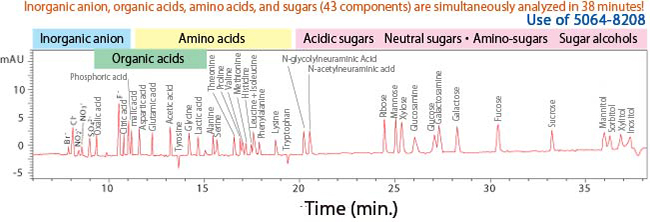

Simultaneous analysis of inorganic anion, organic acids, amino acids, and sugars (43 components)

Simultaneous analysis of inorganic anion, organic acids, amino acids, and sugars (43 components)
