Line-Scan Thickness Monitor (In-line type) NEW

This in-line monitor can measure film thicknesses across the full-width and full-length of film products during manufacturing.
By combining our unique spectral interference technology with our newly developed high-precision film thickness processing technology, a single monitor can measure film thicknesses as wide as 500 mm in the shortest interval of 0.01 seconds

Product

Features
  • Line scan method enables full-width and full-length film inspection without ` omission`
  • Original design of both hardware and software
  • As a manufacturer specializing in film thickness measurement, we can provide enriched support
  • High precision measurement is possible (patented)
  • High speed measurement is possible
  • Resistant to fluttering
  • Wide sample width (up to 10 m in the transverse direction)



Possible to install additional detectors to adjust to film width(MAX10m)

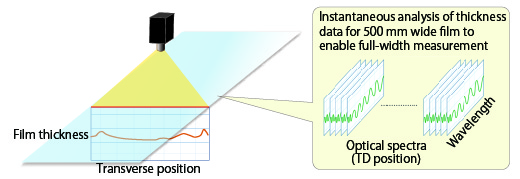

Instantaneous analysis of thickness data for 500 -mm -wide -film to enable full -width measurement



Specifications

Measurement item Film thickness(FFT)
Spatial resolution 1 mm
Transverse width 500 mm
Wavelength width per element Approx. 0.6 nm
Film thickness range 2 ~ 300 μm
Scan interval 10 msec ~



Examples

Measurement of PET film thickness

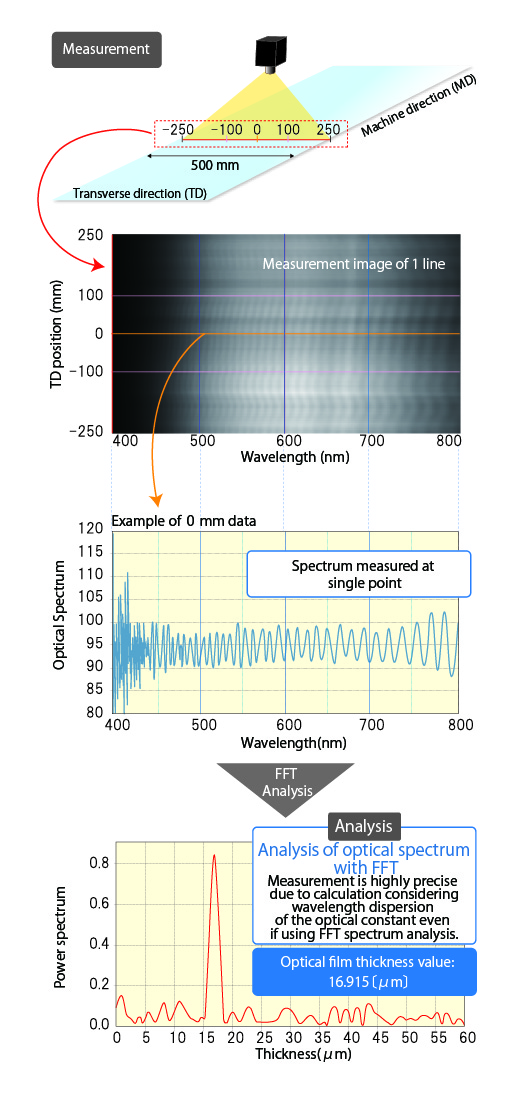

PET film becomes birefringent when stretched. The resulting spectral reflectance will become as shown in the figure. Our unique technology avoids the influence of this birefringence allowing for highly precise measurement.

The resulting spectral reflectance
Our unique technology avoids the influence of this birefringence allowing


In the case of 500 mm wide packaging film

In the case of 500 mm wide packaging film

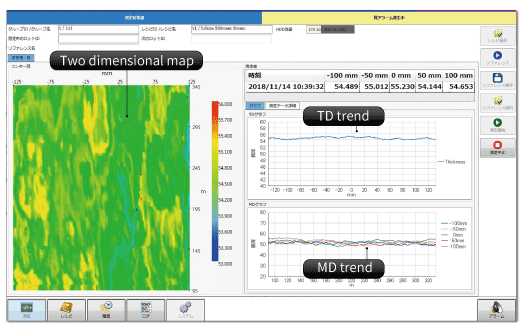

Software


Related Information

Related Product

Line-Scan Thickness Monitor (Off-line type)

Array Spectrometer MCPD-9800

Optical Thickness Meter OPTM series

Thickness Monitor FE-300

Spectrum Ellipsometer FE-5000/5000S
